Your Position: Home > Product > Rubber synchronous belt

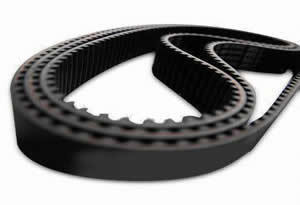

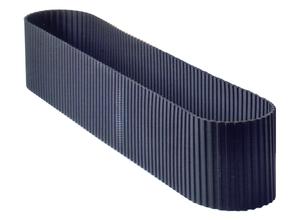

The trapezoidal tooth industrial synchronous belt

Update: 2014/6/18      View:
  • Brand:
  • Type:
  • Order Online
Introduction

The trapezoidal tooth industrial synchronous belt

产品介绍


 梯形齿工业同步带



欲参考同步带产品型号的详细尺寸，请点击“详细规格”

型号 节距 (mm) 齿高 (mm) 带厚 (mm) 角度 β°
MXL 2.032 0.51 1.14 40
XL 5.080 1.27 2.30 50
L 9.525 1.91 3.60 40
H 12.70 2.29 4.30 40
XH 22.225 6.35 11.20 40
XXH 31.750 9.53 15.70 40
T2.5 2.5 0.7 1.30 40
T5 5 1.20 2.20 40
T10 10 2.50 4.50 40
T20 20 5.00 8.00 40
AT5 5 1.20 2.70 50
AT10 10 2.50 5.00 50
AT20 20 5.00 8.00 50
