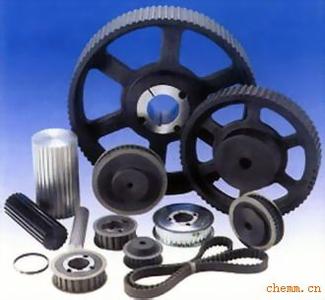

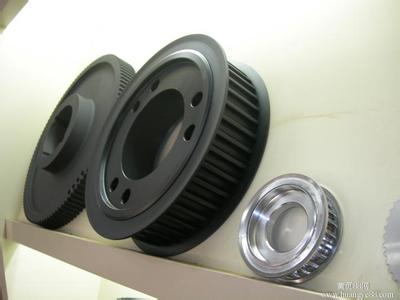

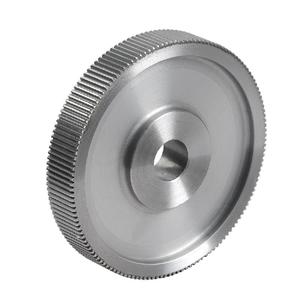

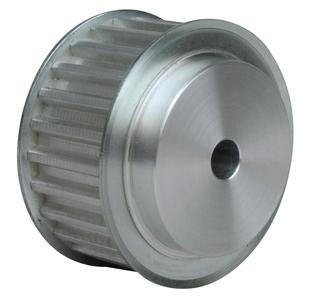

Synchronous belt wheel
Update: 2014/6/18 View:
- Brand:
- Type:
Introduction
|
齿数 Teeth Number |
3M | 挡圈 | |
|
节径 Pitch Diameter |
外径 Outside Diameter |
外径 Outside Diameter |
|
| 10 | 9.55 | 8.79 | 13 |
| 11 | 10.50 | 9.74 | 14 |
| 12 | 11.46 | 10.70 | 15 |
| 14 | 13.37 | 12.61 | 17 |
| 15 | 14.32 | 13.56 | 18 |
| 16 | 15.28 | 14.52 | 19 |
| 18 | 17.19 | 16.43 | 21 |
| 19 | 18.14 | 17.38 | 22 |
| 20 | 19.10 | 18.34 | 23 |
| 21 | 20.05 | 19.29 | 24 |
| 22 | 21.01 | 20.25 | 25 |
| 24 | 22.92 | 22.16 | 26 |
| 25 | 23.87 | 23.11 | 27 |
| 26 | 24.83 | 24.07 | 28 |
| 28 | 26.74 | 25.98 | 30 |
| 30 | 28.65 | 27.89 | 32 |
| 32 | 30.56 | 29.80 | 34 |
| 35 | 33.42 | 32.66 | 37 |
| 36 | 34.38 | 33.62 | 38 |
| 40 | 38.20 | 37.44 | 42 |
| 45 | 42.97 | 42.21 | 47 |
| 48 | 45.84 | 45.07 | 49 |
| 50 | 47.75 | 46.98 | 51 |
| 54 | 51.57 | 50.80 | 55 |
| 60 | 57.30 | 56.53 | 61 |
| 64 | 61.12 | 60.35 | 65 |
| 72 | 68.75 | 57.99 | 72 |
| 80 | 76.39 | 75.63 | 80 |
| 84 | 80.21 | 79.45 | 84 |
| 90 | 85.94 | 85.18 | 90 |
| 96 | 91.67 | 90.91 | 95 |
| 112 | 106.95 | 106.19 | 111 |
